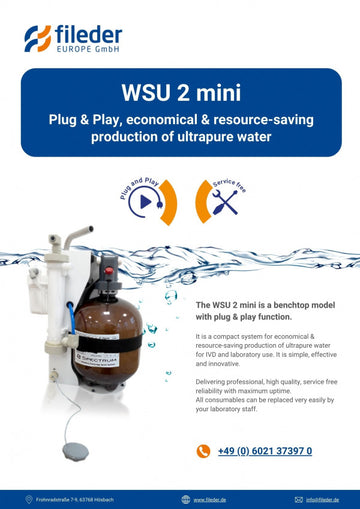

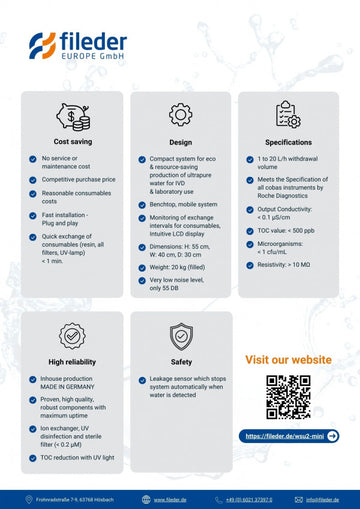

Fileder Water Supply Unit WSU 2 mini

Download Spare Part List
Resistivity > 10 MΩ
Output Conductivity < 0.1 µS/cm
TOC-value (Total Organic Carbon) < 500 ppb
Microorganisms < 1 cfu/ml
Filtration 0.2 µm
  • Bench-top system
  • Recommended: Pre-filtration unit
  • Pre-filtration unit for fair or decent water quality, mountable on trolley
  • Pre-filtration unit for poor and very poor water quality, on trolley
  • Leakage sensor included
  • WSU 2 mini: 1 L/h up to 20 L/h withdrawal volume
  • Meets the Specification of all cobas instruments by Roche Diagnostics
  • Temperature-compensated conductivity measurement
  • Dynamic maintenance intervals depending on consumption and water input quality (The device displays when something needs to be changed)
  • Quick exchange of consumables (resin, filters, UV-lamp) < 1 min.

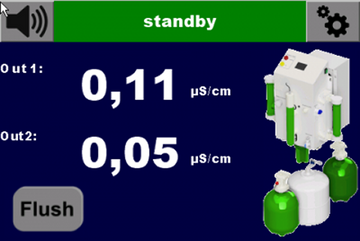

Control unit

  • Microcontroller system with touch display
  • Warning if conductivity exceeds 0.2 µS/cm (5 MΩ)

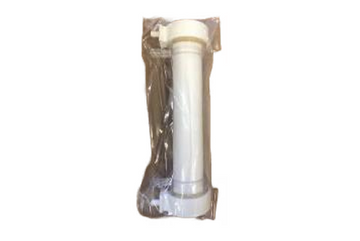

Sterile filter

  • 1x sterile filter with filtrate connections
  • Membrane: 0.2 µm

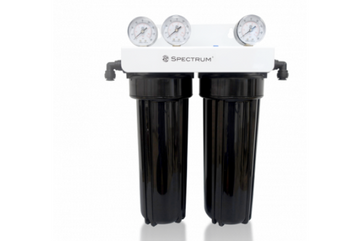

Pre-filtration Unit (decent / fair raw water conditions)

  • SPECTRUM Filter Activated Carbon

Pre-filtration Unit (decent / fair raw water conditions)

  • Reduction of water hardness
  • Controlled via LCD-display
  • Capacity: 30 Liters

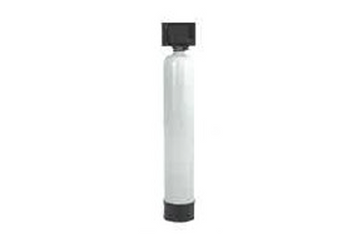

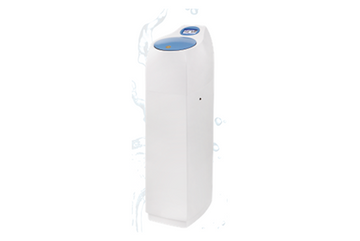

Pre-treatment – Decarbonizer (poor / very poor raw water conditions):

  • Constant flushing
  • Controlled via LCD-display

UV-lamp

  • UV-lamp 14W, lifetime approx. 2000-3000 hours

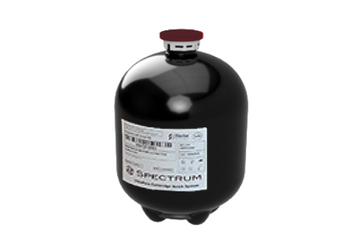

SPECTRUM Pure Cartridge

  • The Spectrum Pure Cartridge is specifically designed for the WSU 2 mini device range to produce ultrapure water with a conductivity > 18 MΩ.
  • The Spectrum Pure Cartridge is ready to use filled with a strongly acidic cation exchanger and a strong alkaline anion exchanging resin.

WSU 2 mini Order Information

Roche Material Number Description Product Picture
10304910001 Water Supply Unit 2 mini, 20 L/h
10299452001 Pre-filtration Unit
10334908001 Descaler/Softener
10334819001 Decarbonizer
06661319001 Filter Tiefenfilter 9 3/4″ (Pre-treatment Unit)
08452300001 Filterelement Activecoal 4 7/8″ ROCHE WSU II
10304987001 UV-lamp WSU 2 mini
09870504001 SPECTRUM Pure Cartridge filled
1036637001 Sterile filter WSU 2 mini (0.2µm)
