WSU 2 Plus

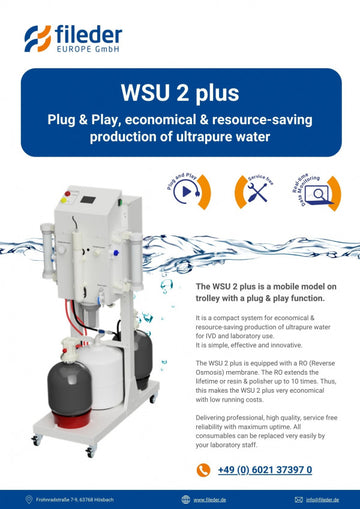

Fileder Water Supply Unit WSU 2 plus

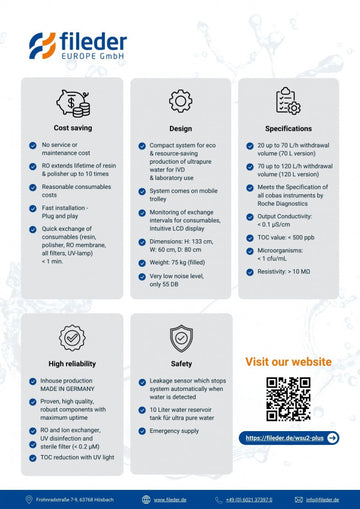

Technical specifications WSU 2 plus

Economical and resource-saving production of ultrapure water for laboratory use and in-vitro diagnostics
Simple and quick (< 1 min.) consumables replacement by the user
Simple and safe sampling point

Operating principle

Multi-stage ion exchanger with UV disinfection REVERSE OSMOSIS MODULE and sterile filter units.

Up to 10 times longer resin service life compared to conventional water treatment systems.

Resistivity	> 10 MΩ
Output Conductivity	< 0.1 µS/cm
TOC-value (Total Organic Carbon)	< 500 ppb
Microorganisms	< 1 cfu/ml
Filtration	0.2 µm

Web-based interface for real-time data monitoring
Mobile frame, trolley
Recommended: Pre-filtration unit

Pre-filtration unit for fair or decent water quality, mountable on trolley
Pre-filtration unit for poor and very poor water quality, on trolley

Leakage sensor included
WSU 2 plus: Up to 70 L/h or up to 120 L/h withdrawal volume,
Meets the Specification of all cobas instruments by Roche Diagnostics
Temperature-compensated conductivity measurement
Dynamic maintenance intervals depending on consumption and water input quality (The device displays when something needs to be changed)
Independent emergency supply function with conductivity monitoring
10 L reservoir tank included (up to 10 L of ultrapure water can be extracted, after failure of water or power supply)
Quick exchange of consumables (resin, polisher, filters, UV-lamp) < 1 min.
10 times longer resin and polisher lifetime due to reverse osmosis membrane (compared to conventional systems)

Control unit

Microcontroller system with touch display
Fixed alarm for resistivity 1µS/cm
Network connection for remote monitoring

Sterile filter

2x sterile filter with filtrate connections
Membrane: 0.2 µm

Pre-filtration Unit (decent / fair raw water conditions)

2x SPECTRUM Filter Activated Carbon

Pre-filtration Unit (decent / fair raw water conditions)

Reduction of water hardness
Controlled via LCD-display
Capacity: 30 Liters

Pre-treatment – Decarbonizer (poor / very poor raw water conditions):

Constant flushing
Controlled via LCD-display

UV-lamp

UV-lamp 14W, lifetime approx. 3000 hours

SPECTRUM Pure Cartridge

The SPECTRUM Pure Cartridge is specifically designed for the WSU 2 plus device range to produce ultrapure water with a conductivity > 18 MΩ.
The SPECTRUM Pure Cartridge is ready to use filled with a strongly acidic cation exchanger and a strong alkaline anion exchanging resin.

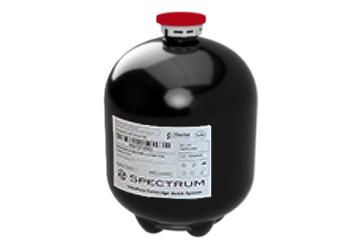

SPECTRUM Ultra Pure Cartridge:

The SPECTRUM Pure Cartridge is specifically designed for the WSU 2 plus device range to produce ultrapure water with a conductivity > 18 MΩ.
The SPECTRUM Pure Cartridge is ready to use filled with a strongly acidic cation exchanger and a strong alkaline anion exchanging resin. Both have a monodisperse particle size distribution based on a styrene divinylbenzene copolymer.

All water-wetted parts are made out of plastic or stainless steel, so that the WSU 2 plus can be operated with tap water as well as with deionized water.

WSU 2 plus Order Information

Order list for Start up supply WSU 2 plus 70 L/h & 120 L/h version

Download

Roche Material Number	Description	Product Picture
09612351001	Water Supply Unit 2 plus, 70 L/h, with Trolley
09619763001	Water Supply Unit 2 plus, 120 L/h, with Trolley
10299452001	Pre-filtration Unit (to be ordered separately for 120 L/h version!)
10334908001	Descaler / Softener
10334819001	Decarbonizer
10300833001	SPECTRUM Scale-inhibiting Filter 4 7/8″
10300868001	SPECTRUM Filter Activated Carbon 9 3/4″ (Pre-filtration Unit)
09806415001	RO-membrane WSU 2 plus, 70 L/h
09808531001	RO-membrane WSU 2 plus, 120 L/h
08452296001	UV-lamp WSU 2 plus
09870504001	SPECTRUM Pure Cartridge filled(to be ordered separately!)
